Product Description

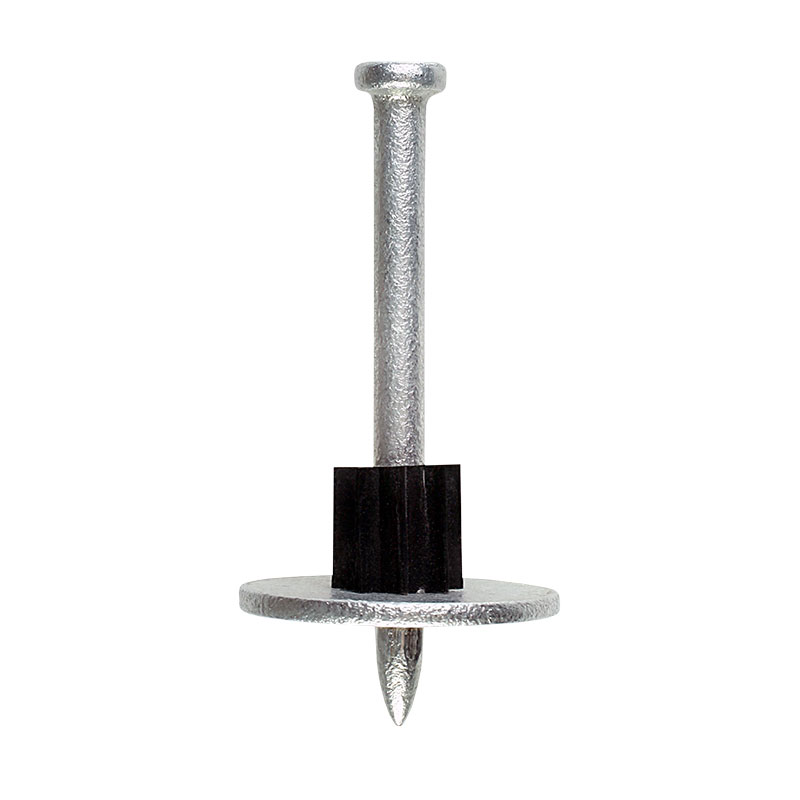

The PDPAWL is a hardened-steel, powder-actuated washered pin designed to fasten building components to concrete, masonry and steel. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 25mm washer that provides additional bearing surface for enhanced upload resistance.
Material
Carbon Steel
Finish
- Zinc Coated
Features & Benefits
- 25mm washer that provides additional bearing surface for enhanced upload resistance
- The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Designed for use with Simpson Strong-Tie® powder-actuated tool PT-27 as well as other common tools
Approvals
- ICC-ES ESR-2138
- Florida FL15730
- LA RR25469
